SEWAGE TREATMENT

Sewage Treatment Plants Parts

OVERVIEW

Tricel UK carries a range of wastewater treatment plants, septic tank parts, and accessories to work with the Tricel Vento septic tank and Tricel Novo sewage treatment plant.

We offer different types of accessories or spare parts for our wastewater treatment solutions.

  • Distributions boxes
  • Turret risers
  • Spare lids and covers

See below for more information on each.

Contact us to book a service for your Tricel wastewater treatment solution. We will refer you to one of our installers/maintenance companies.

+44 (0)1934 422 311

If you have any questions, feel free to call us or use our quote form

talk Sewage Treatment, today.

To speak to one of our agents online, click here

Meet our team.

To find a technician in your area, visit our page

Distributions boxes for septic tanks and wastewater treatment plants

Distribution boxes help distribute pre-treated effluent evenly into drainage trenches or soakaways. Our distribution boxes are gravity fed. They connect to a septic tank or wastewater treatment plant and spread the pre-treated effluent to the drainage fields/soakaways.

Turret risers

Risers are available and used for deeper installations. When a septic tank or wastewater treatment plants have to be installed at a deeper depth, risers are available to provide access for desludging and maintaining the systems in place and to ensure that the lids are not sat below the ground surface level.

They are easy to install (see below for more information) and give the flexibility to adapt to the site requirements and deep excavations.

The Tricel Vento septic tanks undergo production using advanced blow moulding technology, utilizing high density polyethylene as the primary material. Renowned in the market, this exceptional product boasts remarkable durability, featuring a desirable blend of superior strength and lightweight properties. As a result, it offers effortless installation, making it an ideal choice for various septic tank needs.

Tricel Novo wastewater treatment plants are known for their dependable performance, convenient installation, and straightforward maintenance, catering to a wide range of wastewater needs. These efficient plants can accommodate populations ranging from 1 to 50 PE (Population Equivalent).

The Tricel Novo submerged aeration plant is specifically designed for domestic, light commercial, or communal applications. It utilizes a tried-and-tested fixed bed technology, ensuring optimal functionality. Each system consists of three distinct treatment zones, each fulfilling a specific stage of the purification process.

Tricel Vento risers

Tricel Vento without risers
Tricel Vento with risers
Previous slide
Next slide

Manhole risers are available for deeper installation requirements. They are available in 180mm increments x 400mm diameter to a maximum height of 540mm (max 3 risers). All maintenance hole lids are securable and must be secured for safety and to prevent unauthorised access. All maintenance work is done through these manholes. Please refer to the manual (section 7) for more information about the risers and their installations.

Please note that 2 risers are required for each septic tank.

Distribution box risers are also available.
They increase the height of the distribution box by 225mm.
A maximum of 3 risers is permitted with every distribution box.

Tricel Novo risers for deep installation

Tricel offers three different manhole riser heights to suit different invert/inlet levels. Maintenance hole risers allow for the positioning of the treatment plants at the optimum depth for each installation. Wastewater is gravity fed from the home to your treatment plant.

The inlet pipe’s position from the premises determines the excavation depth for the wastewater treatment plant. Tricel offers a choice of manhole risers 250mm/500mm/750mm to help with installation where site conditions require a flexible solution.

Please note that the Novo has a 250mm riser piece, 110mm pipe, clear braided hose, assorted bolts and hose clips.

The quantity of risers required varies according to which Tricel Novo UK model you have and the number of turrets that need extending. For example, a Tricel UK6 has x1 turret. It will require only x1 riser, whereas a Tricel UK50 has x7 turrets and will therefore require x7 riser.

For more information about the installation of the risers, please refer to the Tricel Novo Manual (5.9 “Risers”).

Tricel Novo Riser 250mm
Tricel Novo Riser 500mm
Tricel Novo Riser 750mm
Previous slide
Next slide

The main reason for a riser to be used is when the waste pipe from the dwelling is lower than the inlet on the Novo wastewater treatment plant, which is at 535mm. The installer can lower by an additional 750mm on top of the 535mm.
Manhole risers are available to facilitate this and to avoid the access hatch being positioned in a depression, as shown in the diagram.
NOTE: All installation work is to be carried out by a trained, competent person. We recommend you also download and read the manual.
Caution: Always isolate electricity before commencing any installation

ManHoleRiser

1) to prevent surface water from entering the tank and overloading the system, as this can inhibit the growth of the bacteria and could reduce the effluent quality.
2) to prevent water from entering the blower housing, which can harm the control panel and the air blower.

Why risers are important:

If you don’t use turrets when you are supposed to, see below what can happen to your installation. Always work with a professional builder.

Steps to follow:

  1. Take off the desludging cover.
  2. Apply a bead of silicone around the insides of both sides of the joiner to seal.
  3. Put the joiner on the pipe already in place.
  4. Put extension in place.
  5. Apply another silicone bead to the joiner outside to ensure a watertight seal.
  6. Place the desludging cover onto the pipe as before.

Desludging-Cover-Tricel-Novo

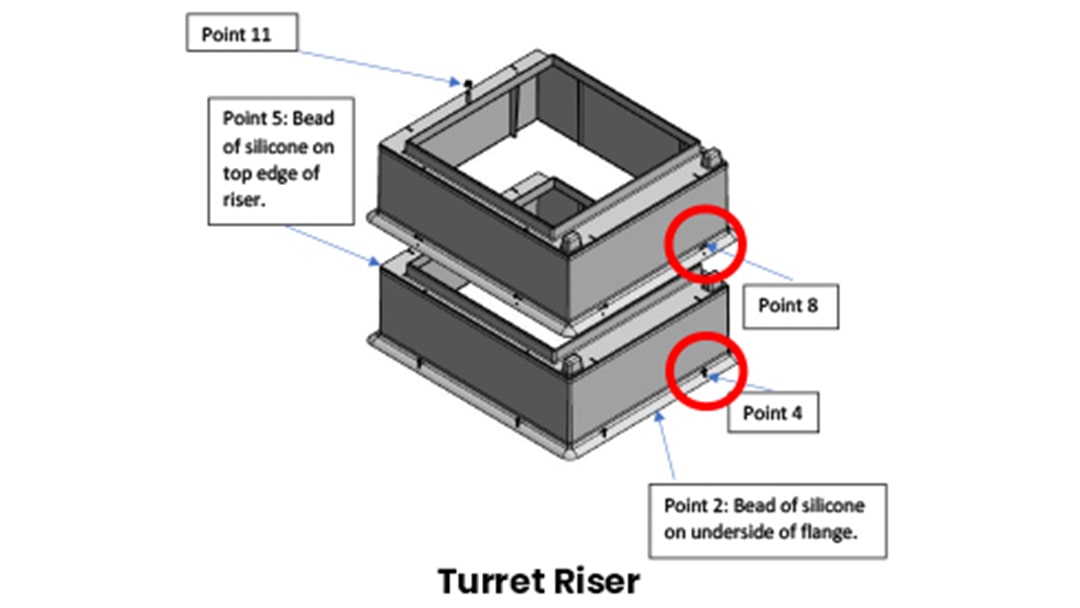

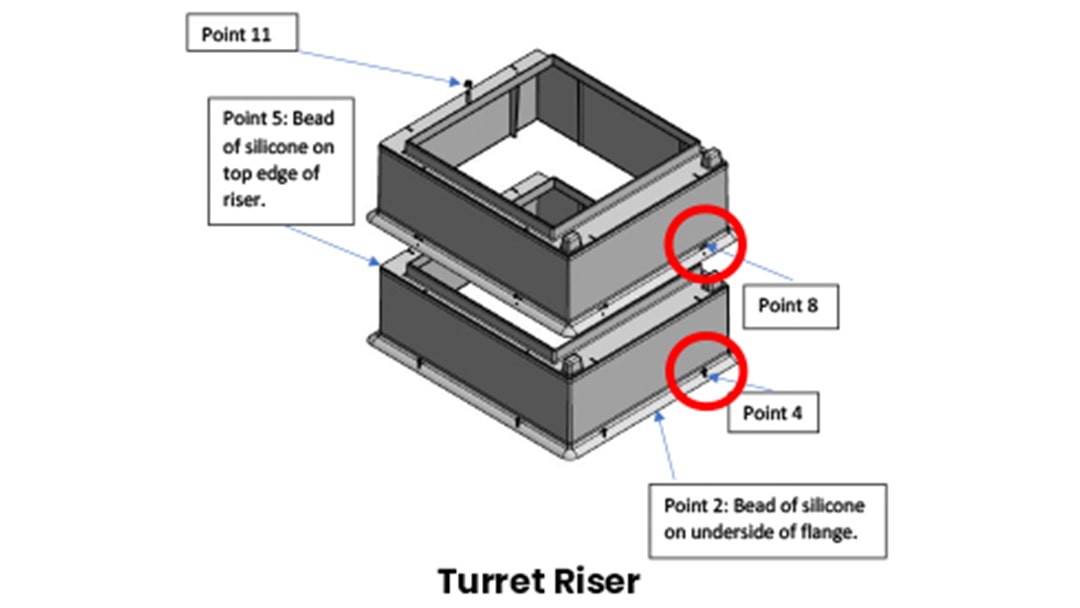

See below the steps to follow:

1. Take off the access cover. Disconnect any electrics or pipework if necessary.
2. Apply a bead of silicone around the inside curved flange edge of the first riser.
3. Place the riser flange down on the turret.

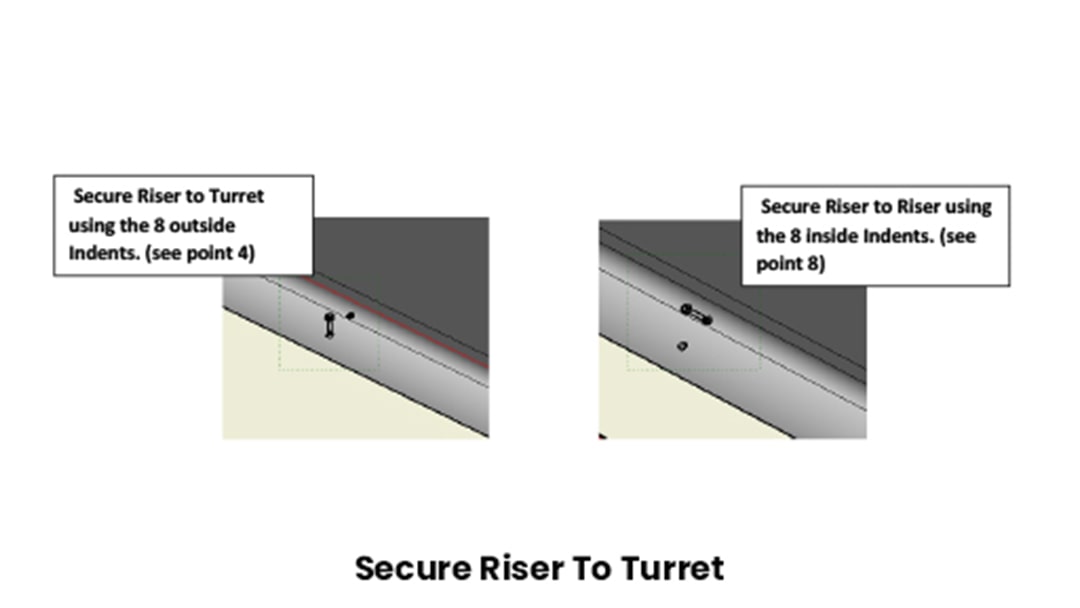

4. Secure the riser using 8 M6 x 25mm tech screws. Insert the screw at a 90-degree angle.



Where more than a 250mm rise is required:

5. Apply a bead of silicone all around the top edge of the riser.

6. Place another 250mm riser on top of the first riser.

7. Repeat steps 5 and 6 for a 750mm rise.

8. Secure the riser using 8 M6 x 25 tech screws. Insert screws at a 45-degree angle.

9. Apply a silicone bead on the riser inside to the riser joint. Make sure an excellent watertight seal is achieved.

10. Place the access cover back in position and reconnect any electrics.

11. Secure access in position using an M12 bolt.

Each lid should be secured at all times to prevent unauthorised access. Tanks are supplied with two connecting points, as shown below.

To secure the lid, rotate it until tight. Tighten the screw in place with a screwdriver. The cover is now secured in place.

Spare lids and covers

Because accidents can happen, and the lid or covers of your wastewater treatment plant or septic tank might get damaged and needs replacing.

Please see below the replacement parts, lids and covers for Tricel Novo and Tricel Vento.

  • Access lid for Vento 6, 12, 20 (same lid for all tanks)
  • Access lid/cover for Novo UK (will vary depending on the Novo models)
  • Blower housing lid for Novo UK (same for all the Novo models)
  • Desludge lid for Novo UK (same for all the Novo models)
  • Mamway risers 250mm, 500mm or 750mm



For all other maintenance and repairs, we advise you to book a service, and we will refer you to one of our installers/maintenance companies.

We also advise regular maintenance and desludging of your sewage systems to ensure a longer life span of your sewage treatment system.
