SEWAGE TREATMENT
Foul Water Pump stations
FouLift packaged pumping stations
FoulLift range by Tricel are foul water pump stations specifically designed to collect and pump foul water (wastewater from toilets) and grey water (from hand basins, showers, and baths) from locations where gravity drainage is not possible or practical, such as basements, below-ground structures, or ground-floor extensions.
For non-sewage applications (surface water, stormwater, groundwater, grey water and treated effluent), check out the Tricel HydroLift range.

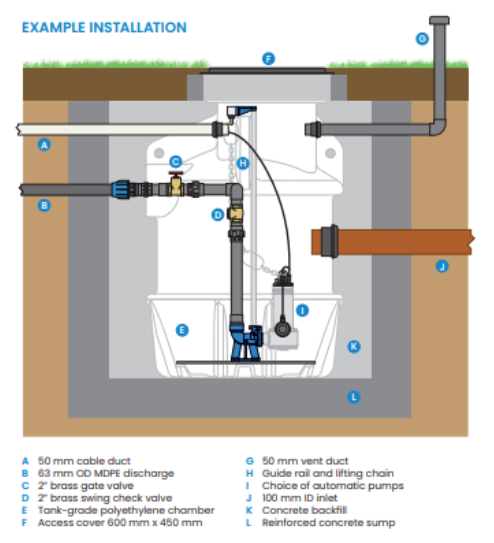

The system temporarily stores the wastewater in a chamber and then uses a submersible pump to lift and discharge the water to a higher level, allowing it to reach the main sewer or drainage system.
Range Summary
- Structurally-reinforced tank-grade HDPE chamber.
- Available in five chamber sizes, up to 800 mm diameter and 2,000 mm deep.
- One or two stainless steel pumps with 50 mm free passage (Lowara Domo 10 VX).
- Supplied as a complete, ready‑to‑install package.
- Vortex impellor for high flow rates.
- Discharges to 63 mm OD MDPE pipe.
- Locking access cover.

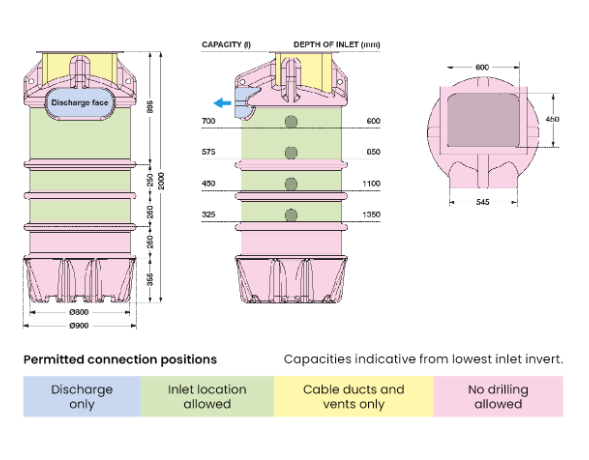

- Inlets and cable ducts can be drilled on site to suit project requirements.
- Comply with BS EN 12050-3:2015 Wastewater lifting plants for buildings and sites. Lifting plants for limited applications.

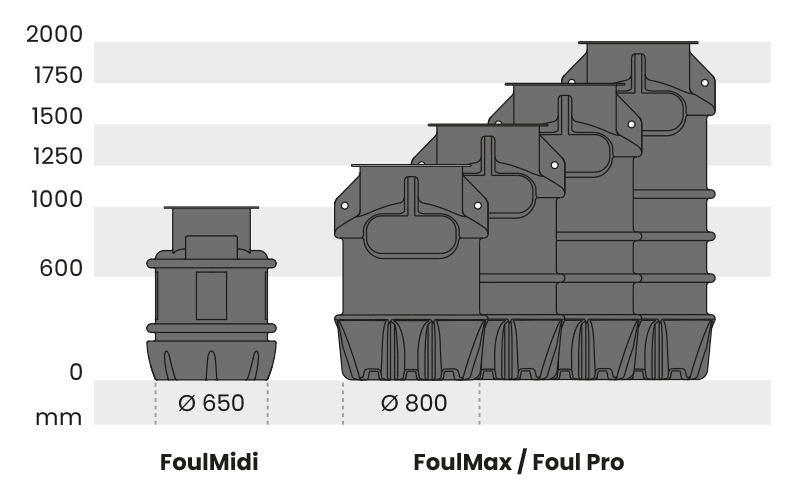

Choice of chamber sizes

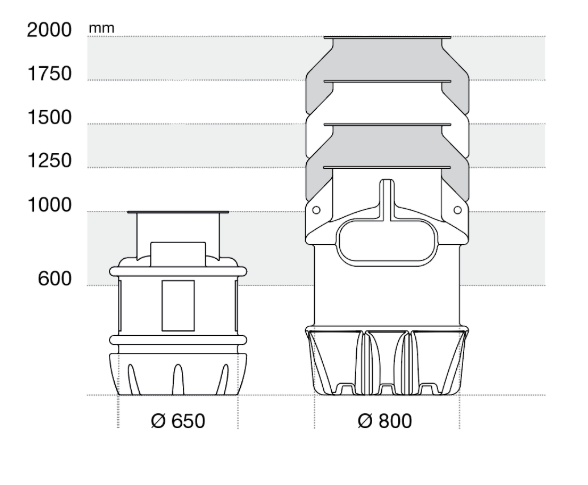

The FoulLift range is available in 650 and 800 diameters and in five chamber depths: 1000mm, 1250mm, 1500mm, 1750mm, and 2000mm.
FoulMidi
- Data Sheet FoulMidi

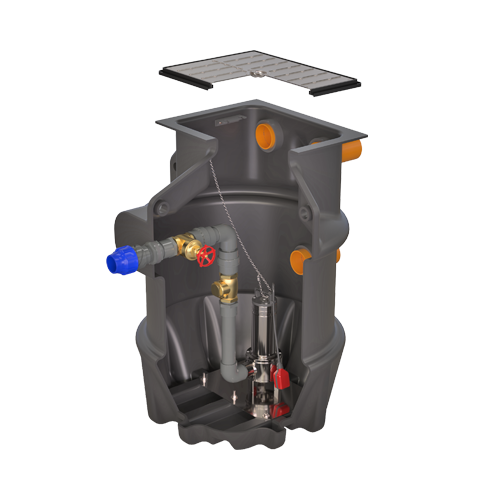

FoulMax
- Data Sheet FoulMax 1250
- Data Sheet FoulMax 1250 Twin
- Data Sheet FoulMax 1500
- Data Sheet FoulMax 1500 Twin
- Data Sheet FoulMax 1750
- Data Sheet FoulMax 1750 Twin
- Data Sheet FoulMax 2000
- Data Sheet FoulMax 2000 Twin

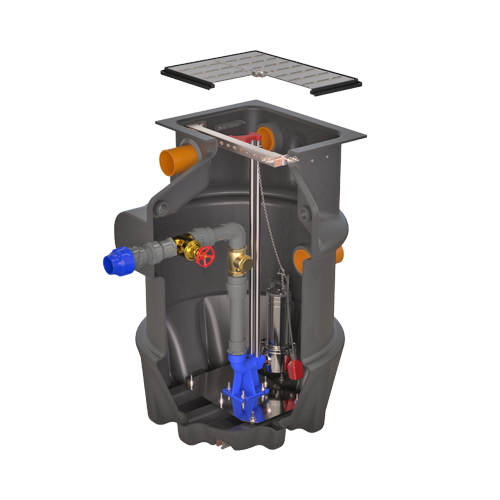

FoulPro
- Data sheet FoulPro 1250
- Data sheet FoulPro 1250 Twin
- Data sheet FoulPro 1500
- Data sheet FoulPro 1500 Twin
- Data sheet FoulPro 1750
- Data sheet FoulPro 1750 Twin
- Data sheet FoulPro 2000
- Data sheet FoulPro 2000 Twin
Single or Twin pump

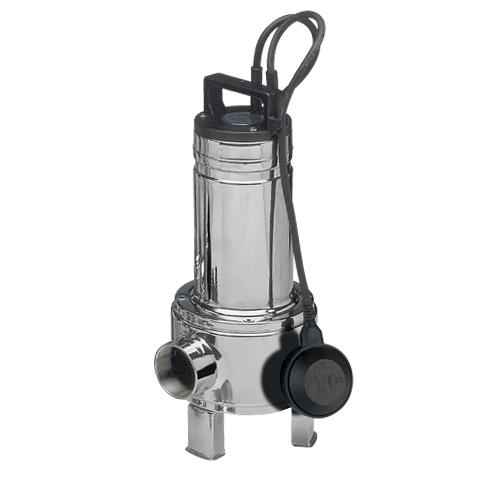

The FouLift range uses the Lowara Domo 10VX pumps

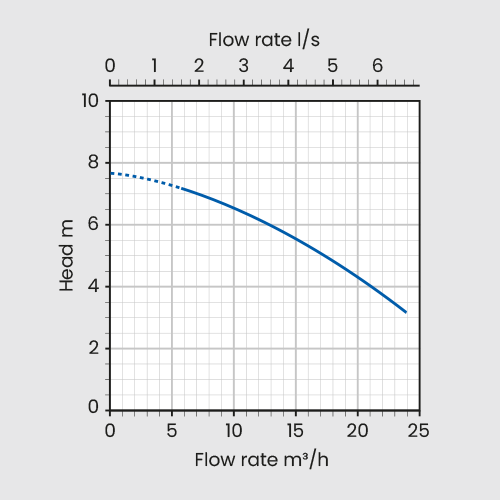

See below the Lowara Domo 10VX curve.
Twin system vs single pump system
A twin pump system complete with high level alarm is recommended for indoor installations, including basement, where there is a risk of flood damage due to pump failure.
